Sketch

Previous  Top  Next

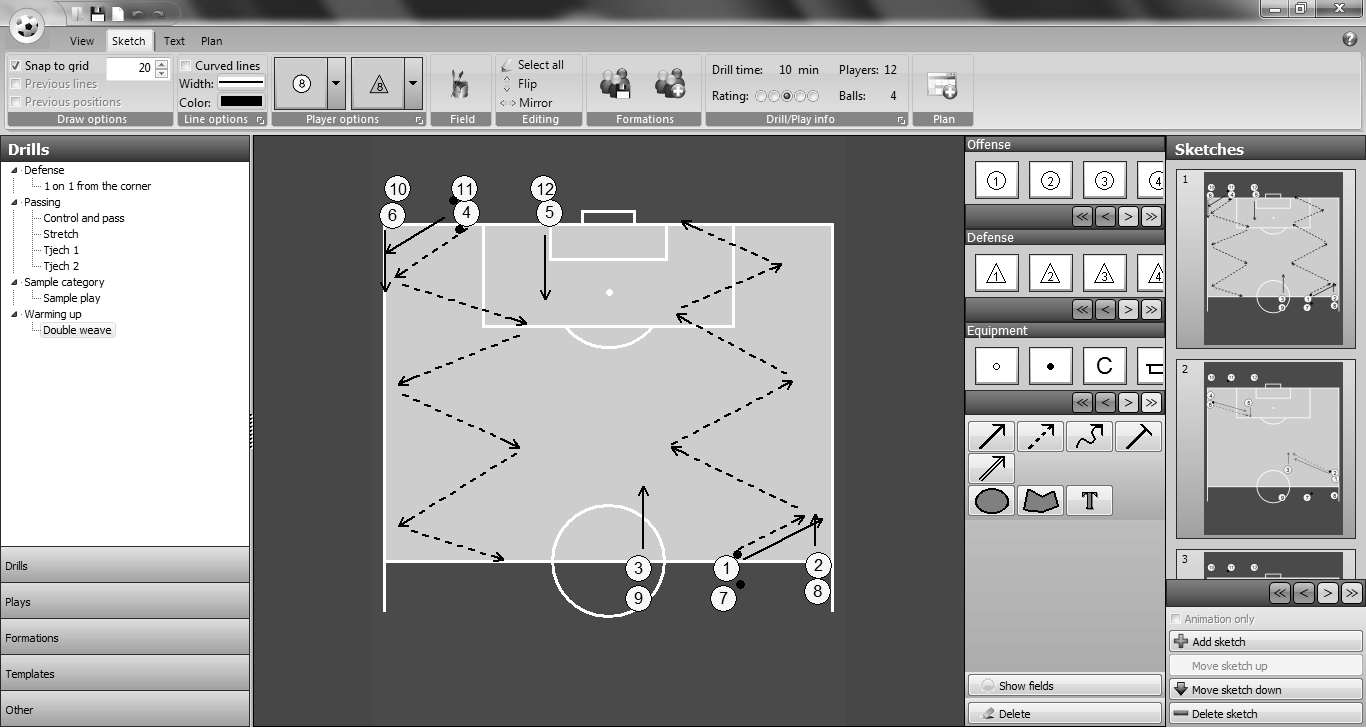

Editdrawingtab



With the sketch tab selected a sketch of the current drill can be edited.

At the top of the window there are, quick options to open, save or creating a new play and to undo/redo your last action.



The ribbon bar has the following buttons and information blocks:

Draw options

To align players and lines check the snap function and select the size of an invisible snap grid.

If the previous position checkbox is checked the players of the previous sequence are drawn in light gray.

With the previous lines checkbox you can show or hide the lines of a previous sequence, if there are no lines in the previous sequence the sequences before that will be checked for lines.



Line options

To make curved lines check the curve checkbox.

You can also set the current drawing pen color and width.

Clicking the expand button will open the default line settings dialog.



Player options

Quickly select the symbols for offense and defense.

Change the default player settings by clicking the expand button.



Field

paint2-blue-24        Change the field colors by pressing the paint button on the field block.



Editing

Select all players and lines at once.

Flip the sketch.

Mirror the sketch.



Formations

formation store-24        When more than 1 player is selected you can save the selected players as a formation.

formation add-24        The add formation button, will show a number of predefined formations which can be used in the current sketch.



Drill/Play info

Information about the play, how many players and balls are needed, how long should the drill take and the rating of the drill/play.

Change the play information by pressing the expand button.



Plan

add-play-24        Add the selected play or category to the plan.





At the left side the available plays and drills are shown.

There are 5 different play types available (drills, plays, formations, templates and other), which can be selected by clicking on the buttons at the bottom. the header will show the selected play type.

In the play type you can then select the category followed by the play or drill of your choice.



By right clicking on a play you can copy, delete, rename or give it one or more tags.



When tags are available the tag filter is visible at the top is visible.



On the right side you can select the sketch to work on.

If the Animation only checkbox is checked the current sequence will not be printed.

Add a sketch below the current sketch by pressing Add sketch,  The maximum number of sketches per play is 75.

Move a sketch up or down.

And delete the selected sketch.



The players, balls and coaches can be selected and dragged and dropped on the field, with the main mouse button.

The movement of players and balls can be drawn with the 5 different arrows. The ellipse and polygon can be used to give a part of the field a different color. The text button can be used to add text to a sketch.

See the symbols for an explanation of the different graphics.



The field can be changed by selecting a new one and pressing the Ok button, sometimes the field button must be pressed to show this option.

Choose apply to whole play to update all sketches in a play in one go.



To select multiple players and lines, lines hold down the CTRL button while clicking on the players/lines.

You can also select an area of the field by holding down the shift key and using the main mouse button to resize a selection rectangle.

Finally all players/lines can be selected by choosing Edit - Select All or by pressing CTRL-A.

The Delete button will delete selected players or movement lines.



When a player is selected with the other mouse button, a player edit window is shown and depending on the player the color, text or rotation can be altered.

The same option can be used for lines, ellipses, polygons and text.
